Due to the prohibitively high cost, developers have not yet embraced the construction of tall wood multi-unit residential buildings. The rising cost of concrete in Vancouver, combined with a cost premium associated with mid-rise concrete buildings, led to a feasibility study that demonstrates a “short wood” building can be comparable in cost to a concrete equivalent. Building codes currently prescribe noncombustible construction or encapsulated mass timber construction for residential buildings up to twelve storeys in height, with no distinction for lower-height mass timber buildings, thereby leading to construction inefficiencies and increased costs for wood mid-rise buildings. Short Wood 8 proposes an eight-storey prototype made up of CLT floor slabs, CLT shear walls and load bearing wood-frame walls that provides an innovative cost-competitive alternative to conventional concrete mid-rise residential buildings that exceed six storeys in height.

project

Short Wood 8

location

Vancouver, BC

client

UBC Properties Trust

completion

2023

size

6,400 sqm

.

entry approach

sustainability

LEED Gold
mass timber

.

compact form

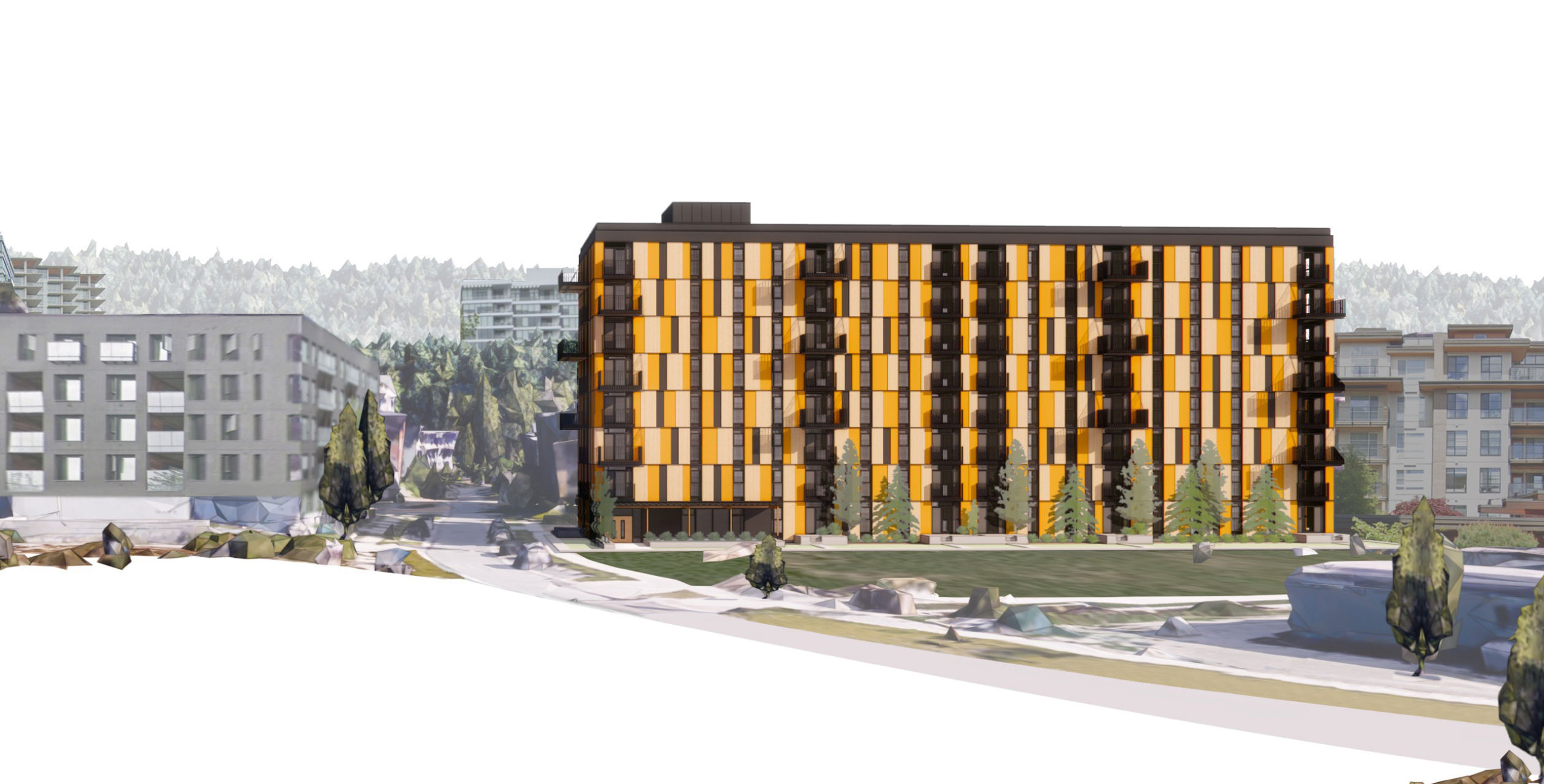

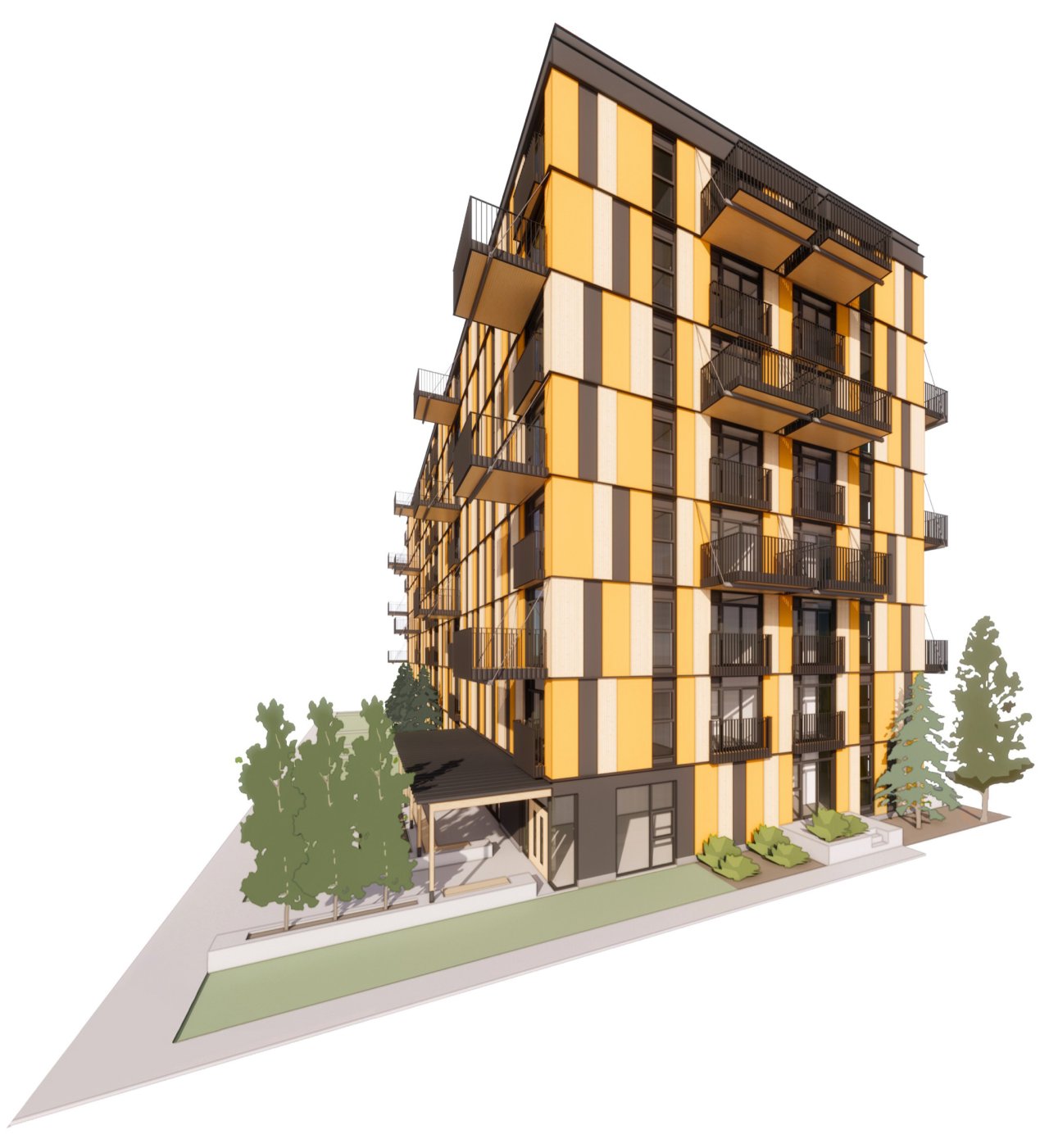

Short Wood 8 responds to world-wide interest by proposing an eight-storey wood-frame and mass timber building system that maximizes the inherent positive attributes of wood for the high-rise multi-unit residential market.

UBC Properties Trust

.

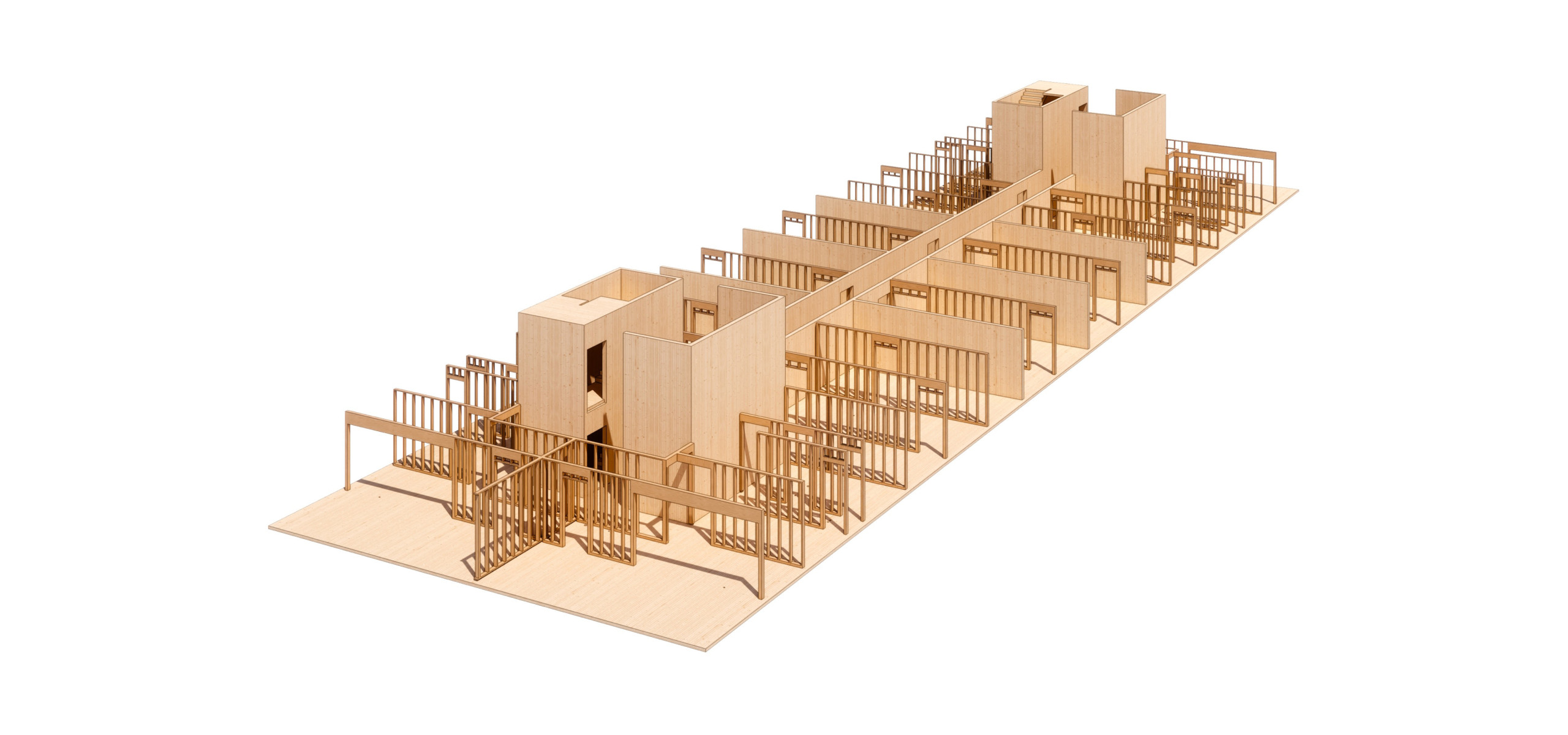

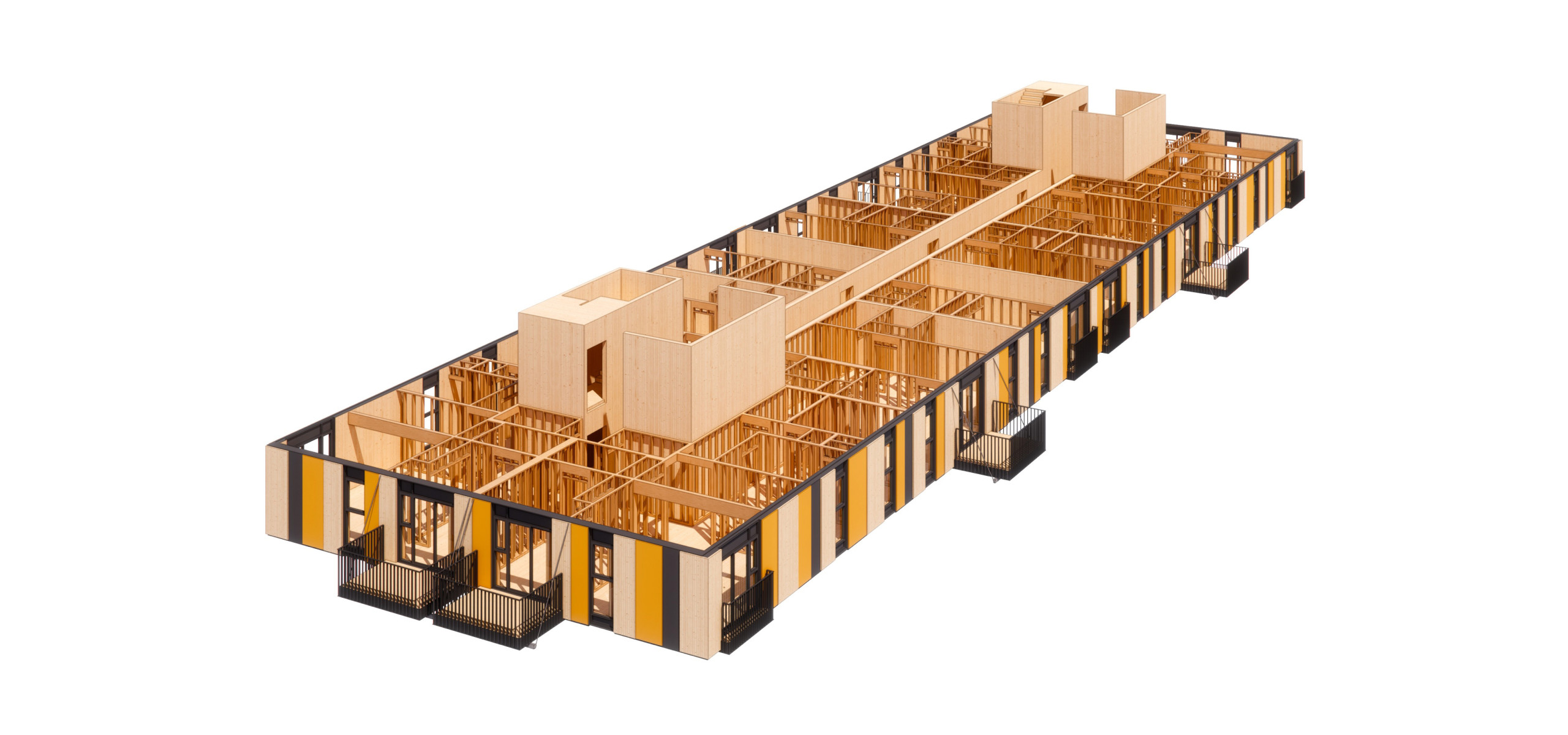

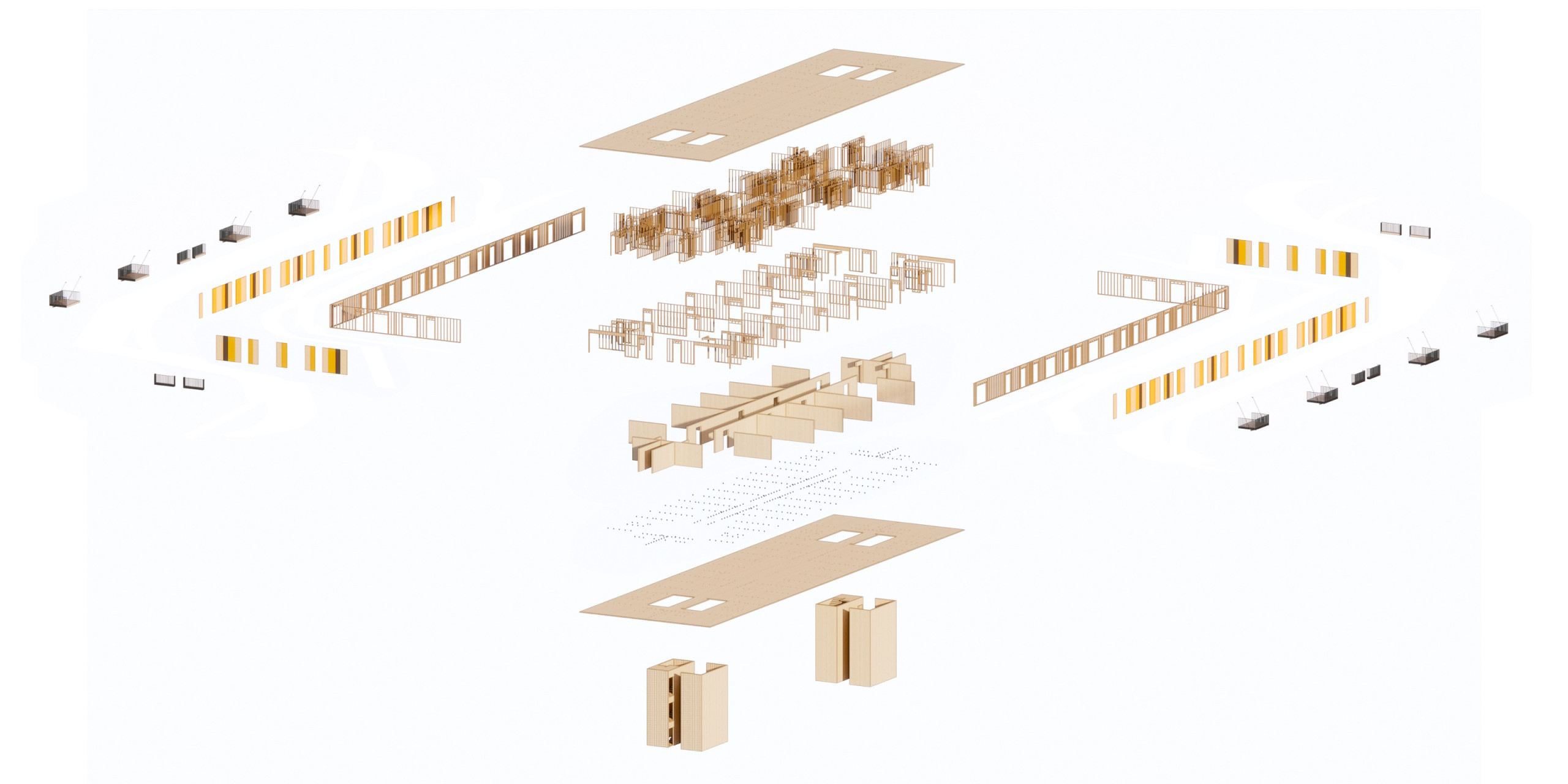

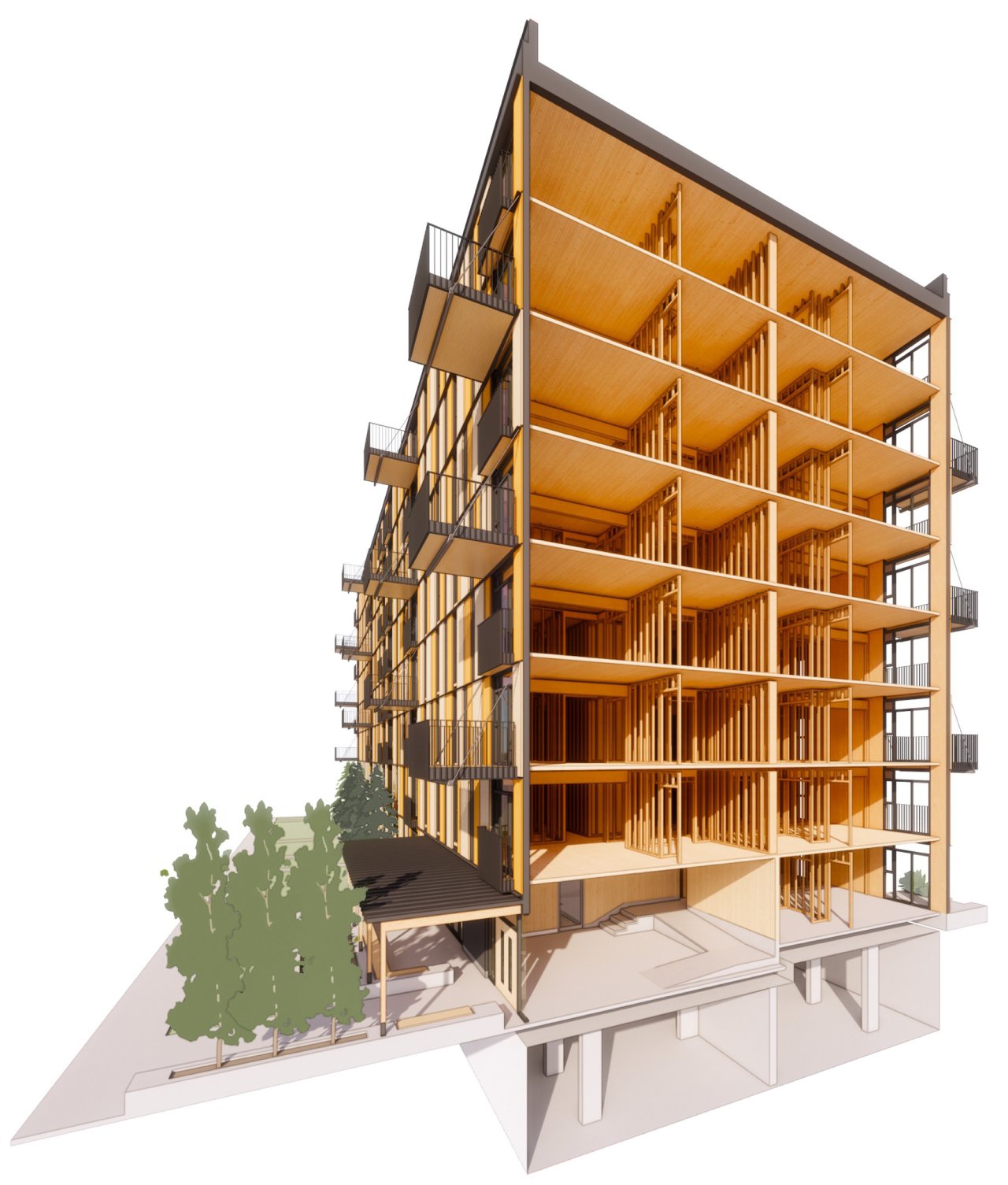

wood-frame and mass timber structure

.

section

.

end view

.

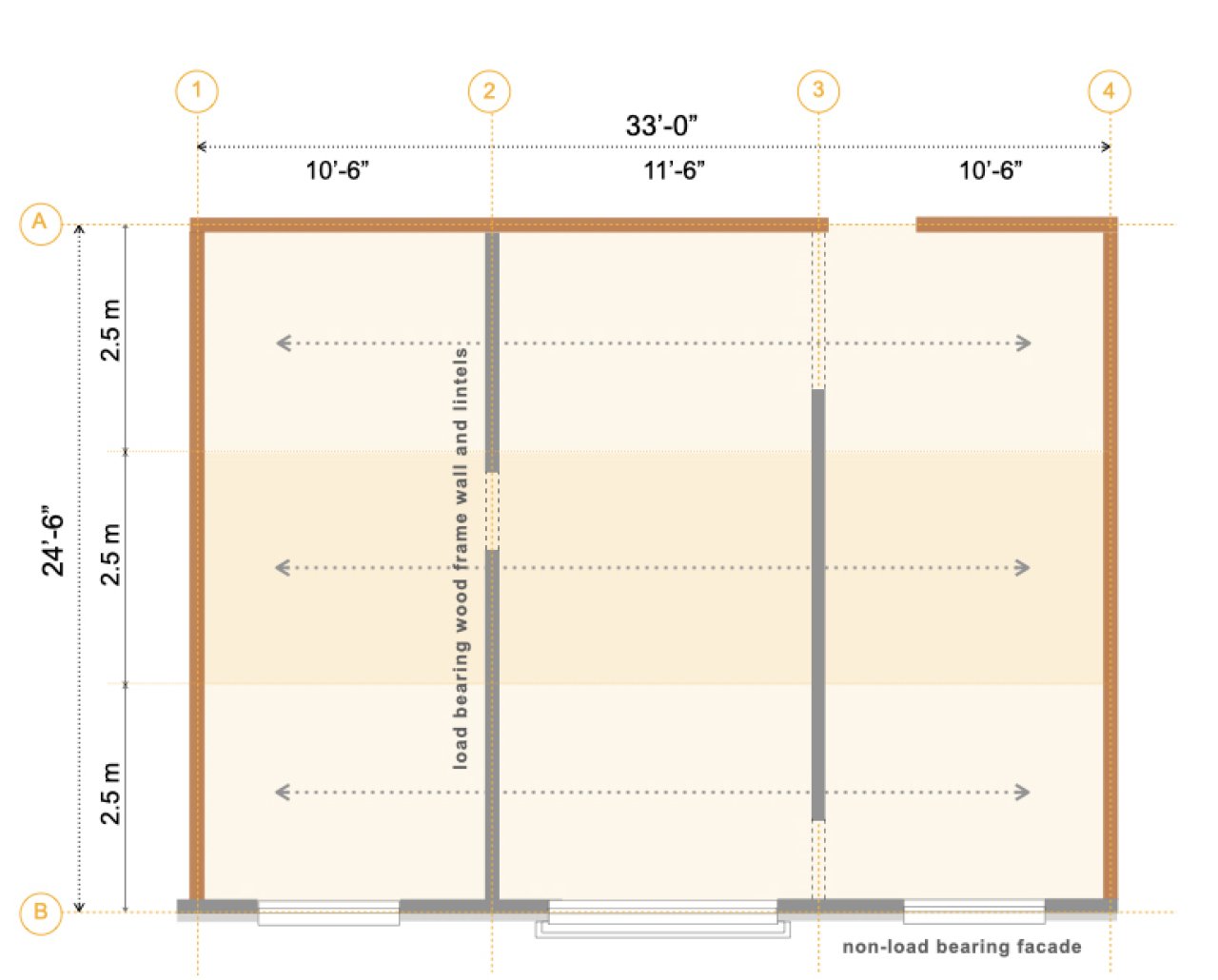

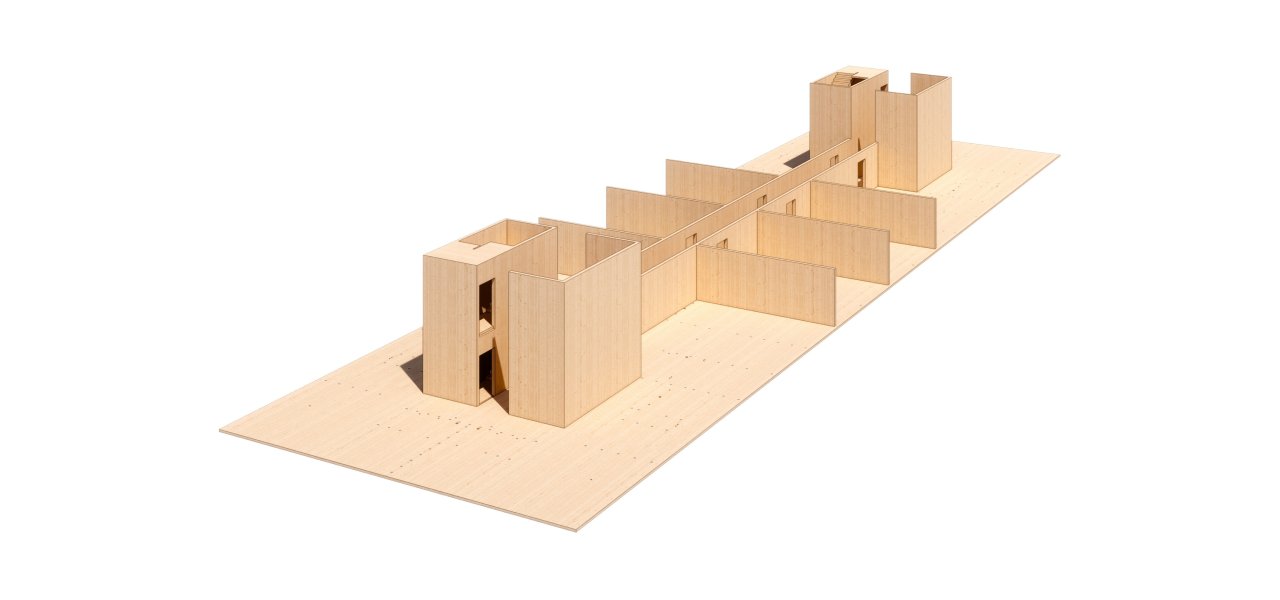

load bearing walls and CLT panel layout

.

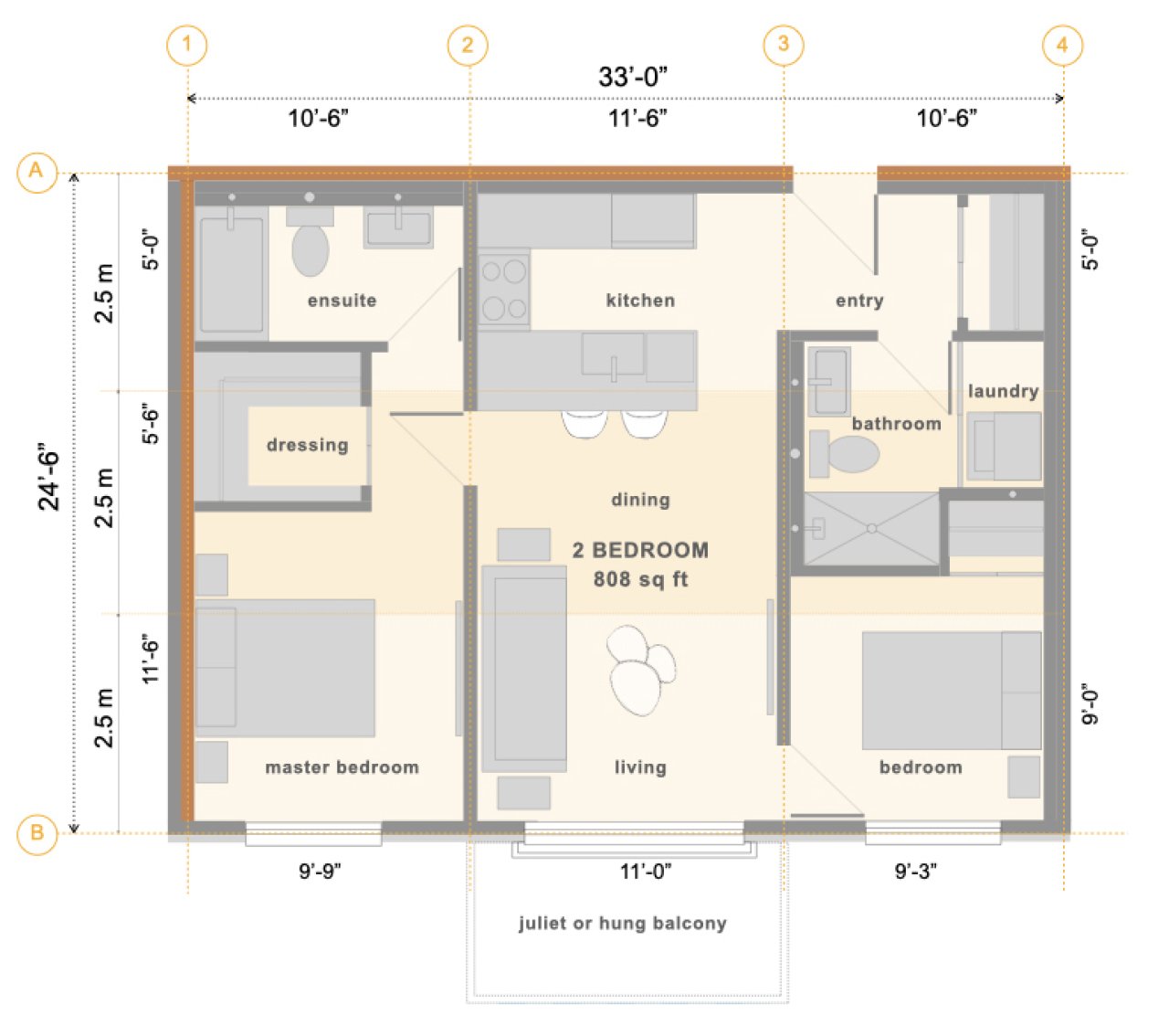

2-bedroom suite

.

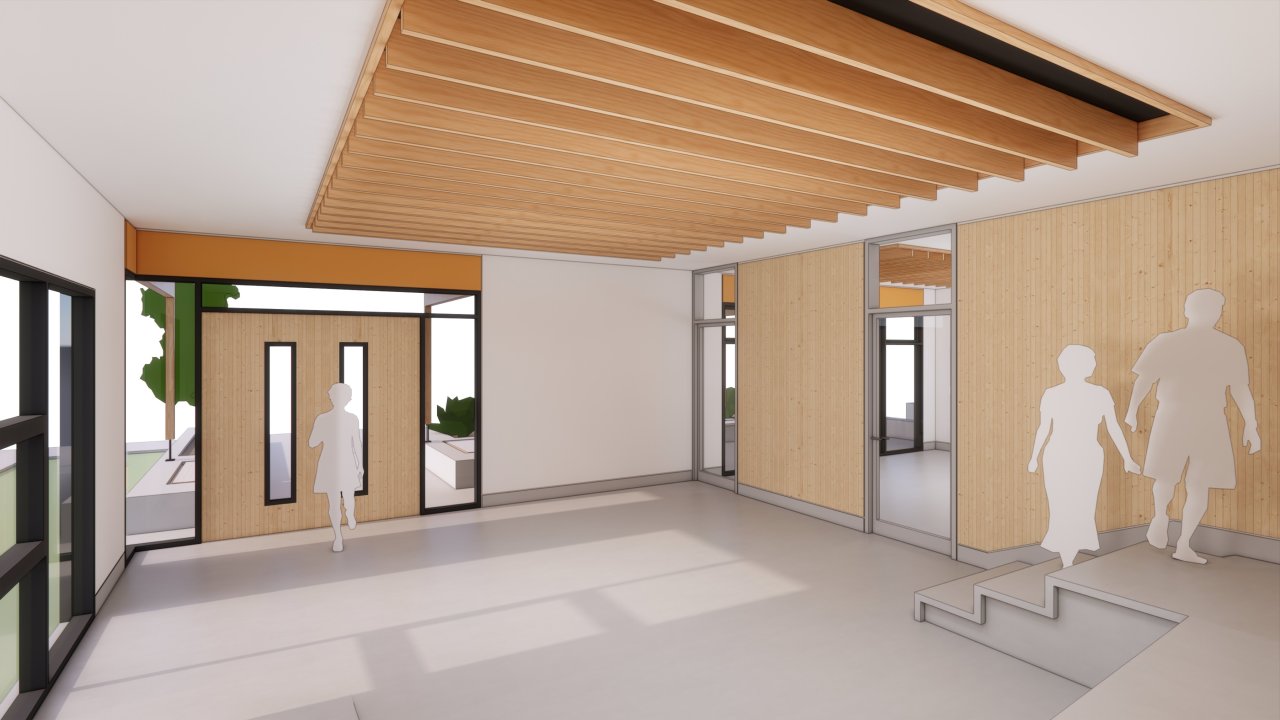

entry lobby

.

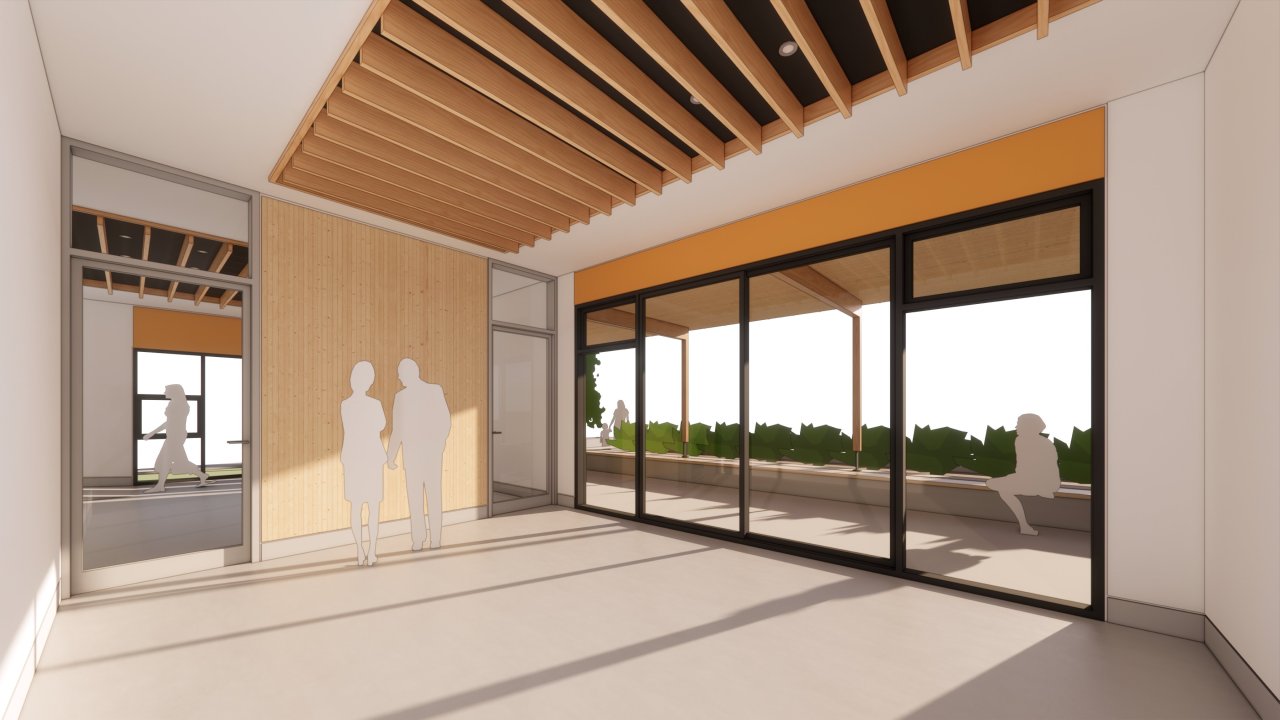

amenity

.

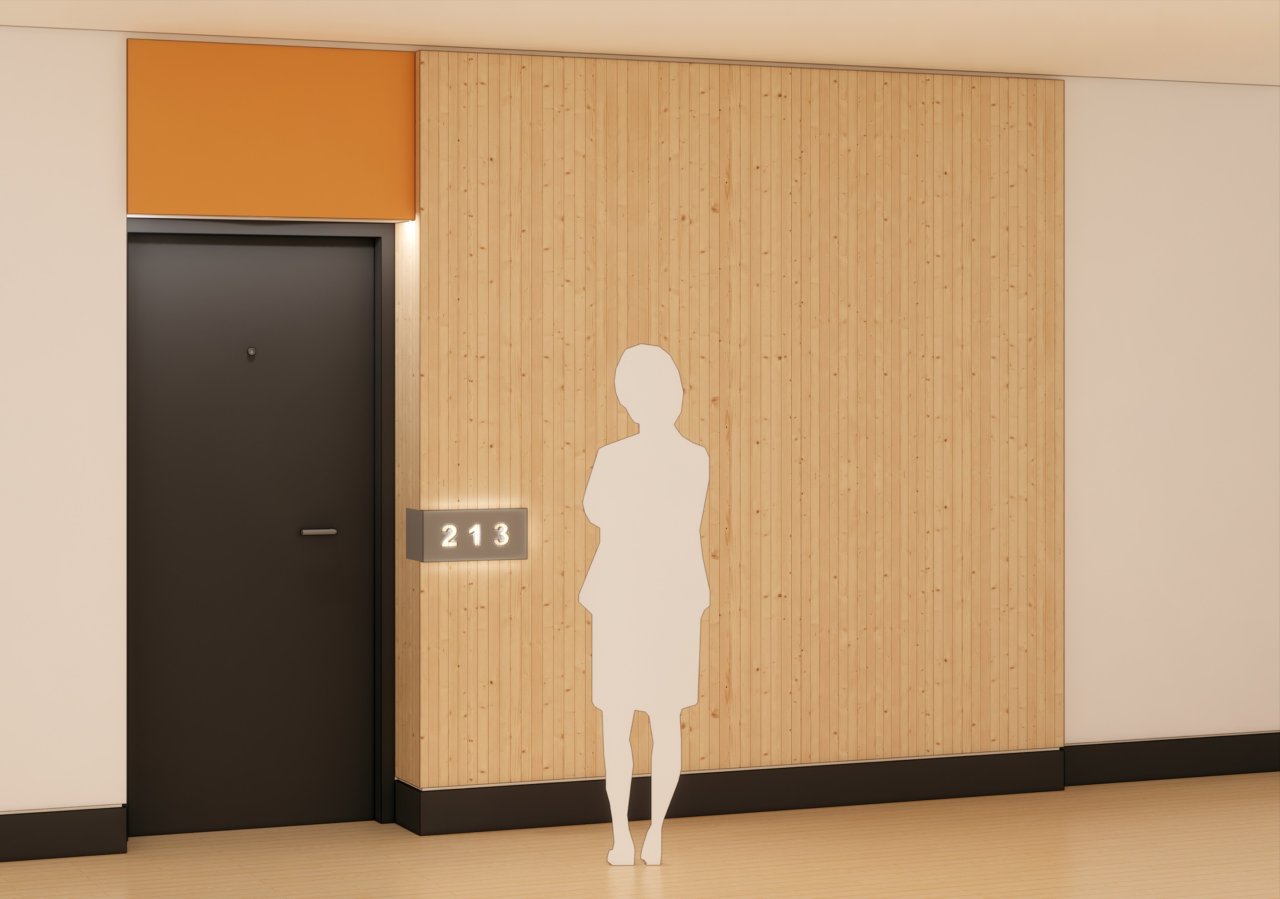

suite entry

.

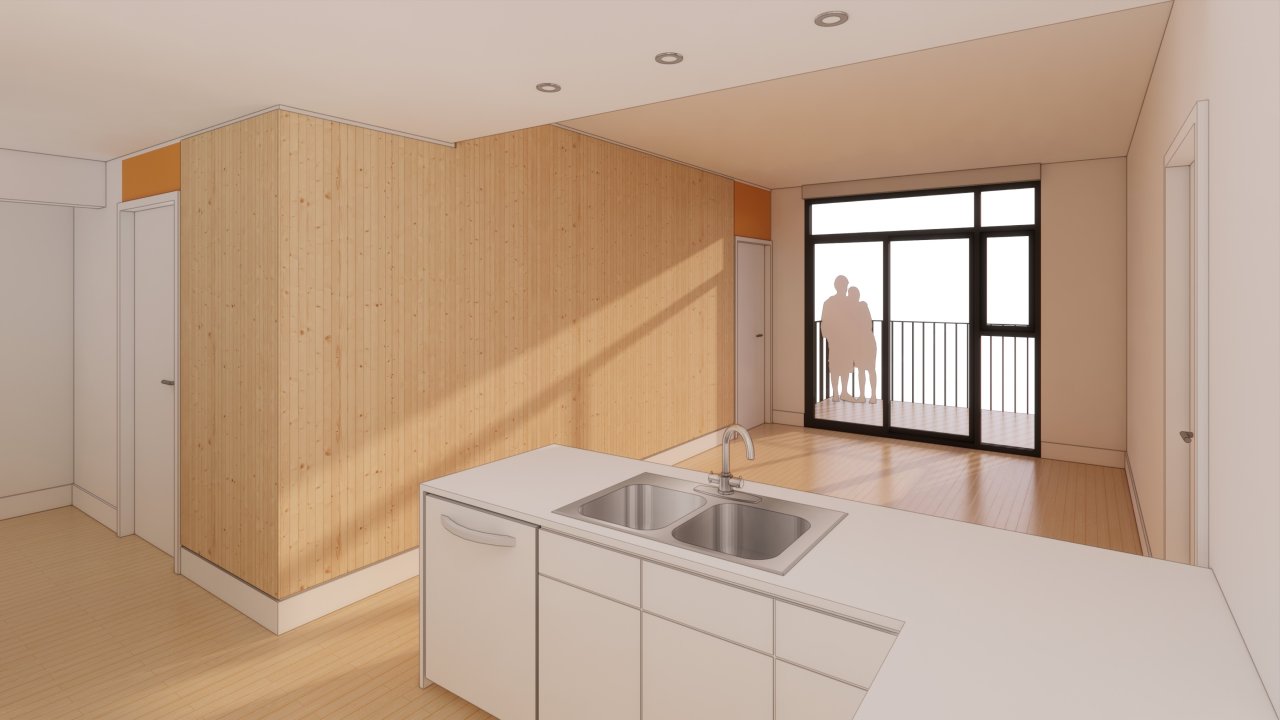

standard suite

.

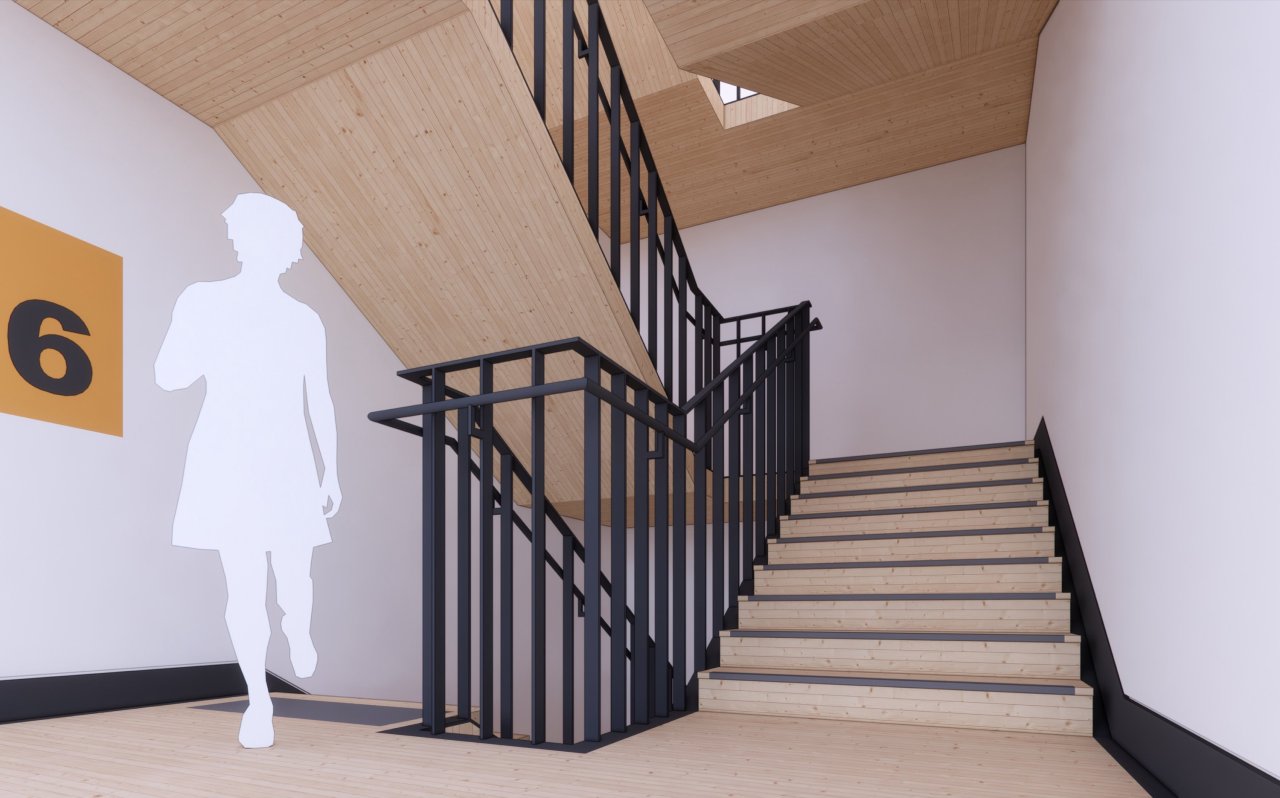

CLT stair core

.

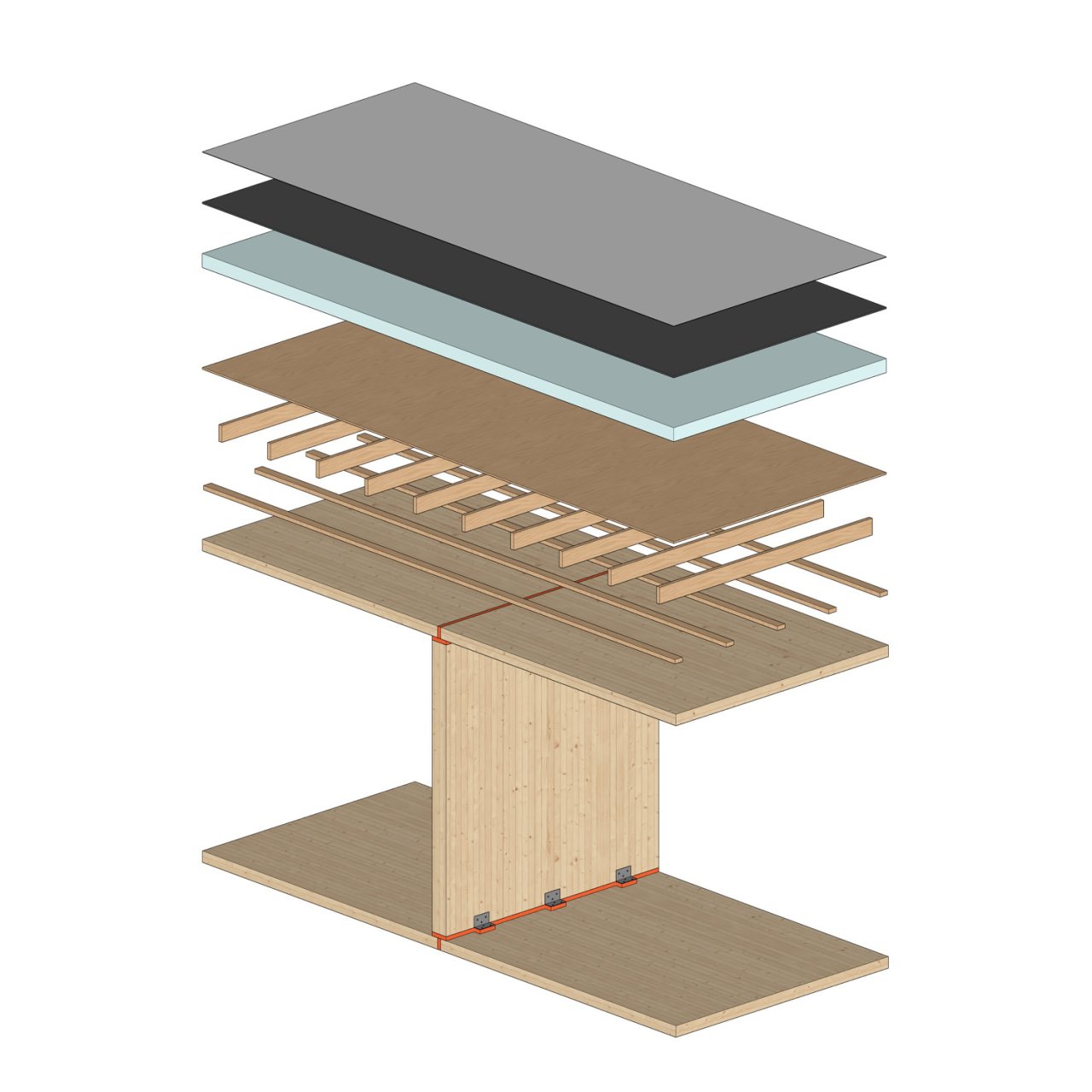

CLT and roof components

.

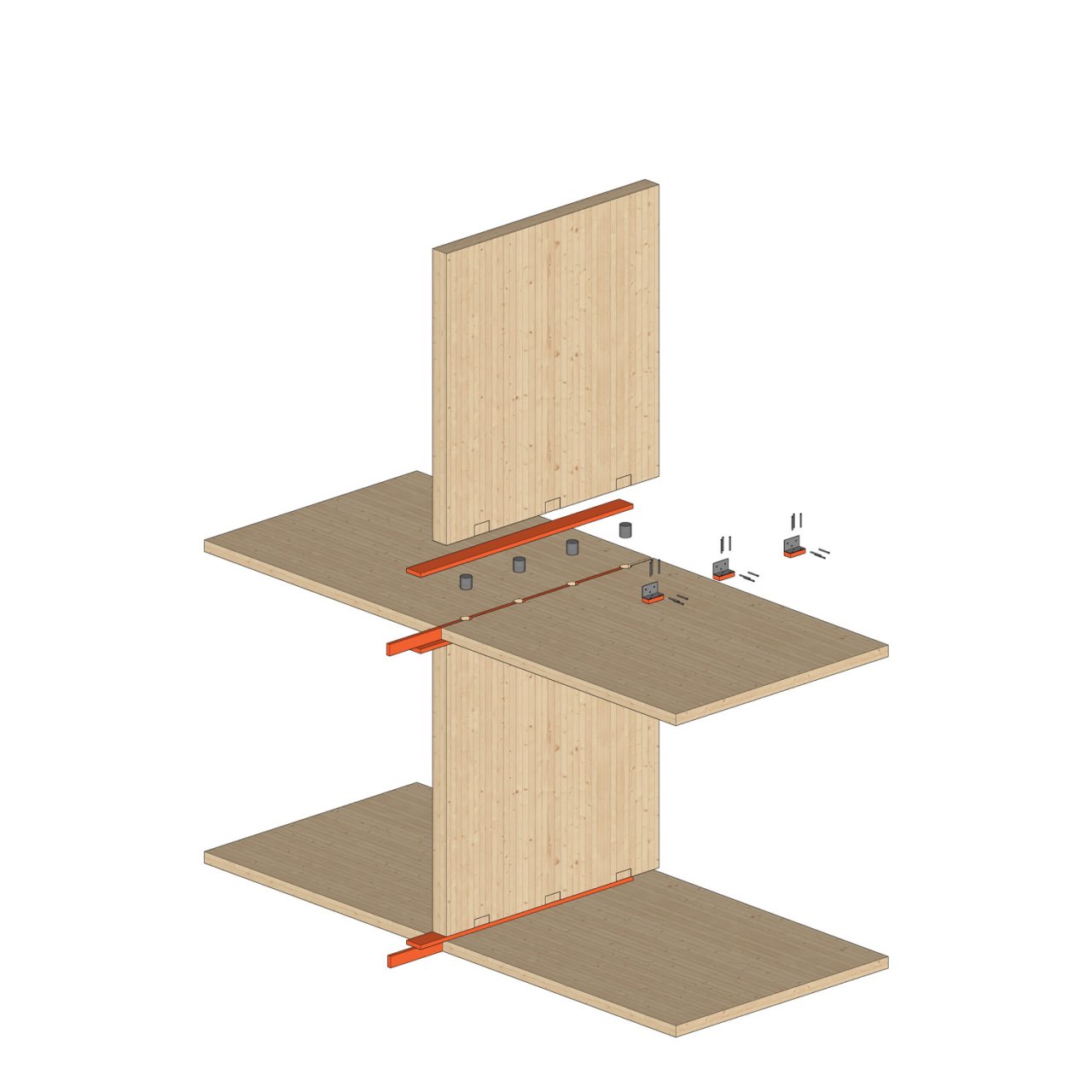

CLT and acoustic separation components

.

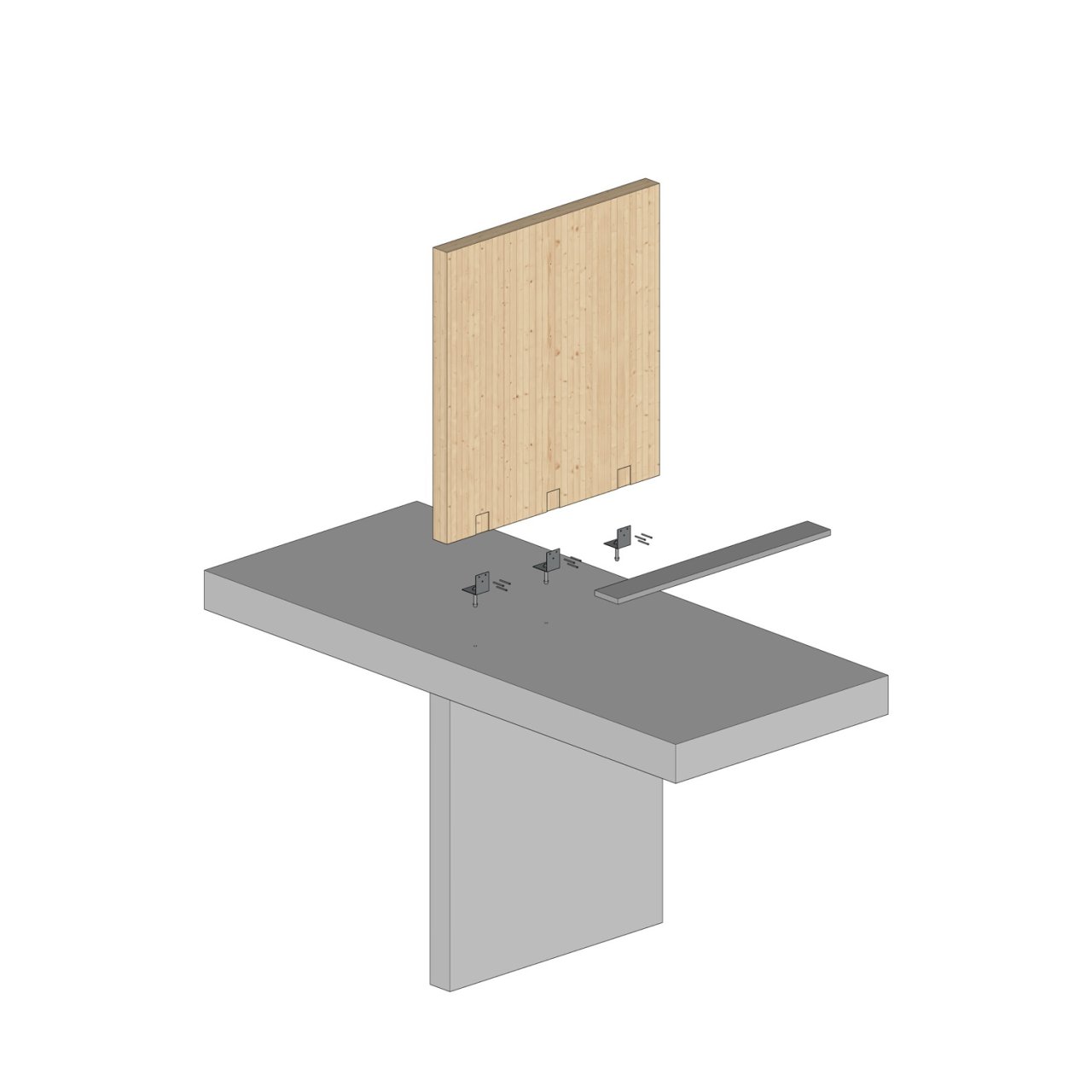

CLT and concrete slab components

Short Wood 8 demonstrates that it is now economically feasible for a hybrid wood-frame and CLT structural system to rise above the current six-storey building code limit.
